| 봉제기계류 |
|
 |

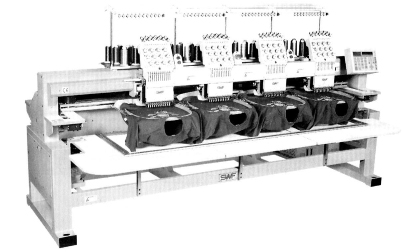

4두형 자동자수기
( Model Number : SWF )
|
|
|
|
|
|
 Click to enlarge image |
|
Embroidery space
(X)x(Y)mm
|
Normal
|
500x450
|
|
Inner
space
|
Wide cap frame
|
360x75
|
|
Semi wide cap frame
|
180x83
|
|
Tubular frame
|
419x439
|
|
Table size(X)x(Y)mm
|
2923x1190
|
|
Head
interval
|
500
|
|
Stitch length
|
0.1~12.7mm
|
|
Speed
|
Max. 1000spm
|
|
Motor
|
Ac Servo Motor.1(Main Shaft Motor),
Pulse Motor.4(Frame Driving Motor)
|
|
Power source
|
1-Phase 100V, 120V, 200V, 220V, 240V
|
|
3-Phase 200V, 220V, 240V, 340V, 380V
|
|
Memory
capacity
|
Standard
|
500,000 Stitches
|
|
Expandable to
|
2,000,000 Stitches
|
|
|
